Dynamic Load Testing Pile Load Testing PDA Integrity Tester
ASTM D4945-12 Standard Test Method for High Strain Dynamic Testing of Deep Foundations
Application
High strain dynamic pile monitoring of pile
Low strain pile integrity detection by reflected wave method (optional)
The pile driving analyzer will provide prediction on the pile bearing capacity, pile integrity, driving stresses and hammer performance for a given pile penetration. It is a relative low cost type of pile testing compared to static load test (MLT or CRP). The testing technique is quick and accurate.
Software Feature
1. The fitting analysis of high strain bearing capacity detection of single pile can be carried out;
2. Fitting parameters can be adjusted conveniently and quickly and the recommended parameters table is provided so as to grasp the fitting skills quickly;
3. The simulated static load test curve and pile soil resistance distribution diagram can be output;
4. Original curve and fitting calculation curve can be output in a variety of modes;
5. A variety of soil models can be selected to fit a variety of geological conditions in China;
6. The output in Chinese and English is supported and a variety of international codes and requirements are met;
7. Common Windows platform operation makes the system run safely and reliably.

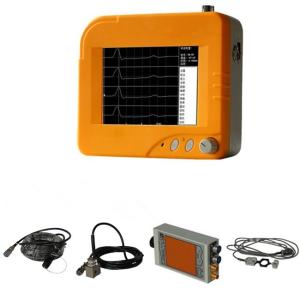

High Strain Static Load Tester for Foundation Pile Quality Measurement
| Display method | 8.4-inch true-color LCD screen
Resolution: 800×600 (adjustable backlight) |
| Storage capacity | 16G electronic hard disk |
| Master control system | Low power embedded system
Basic frequency≥1GHz Memory: 512M |
| Sampling interval | High strain: 10-500μs multi-level adjustable
Low strain: 5-1000μs continuous adjustable |
| Floating point magnification | 1～256 |
| Recording length | 1k |
| A/D conversion accuracy | 24-bit instantaneous floating point |
| System noise voltage | ＜20μV |
| Dynamic range | ≥100dB |
| Data export method | USB |
